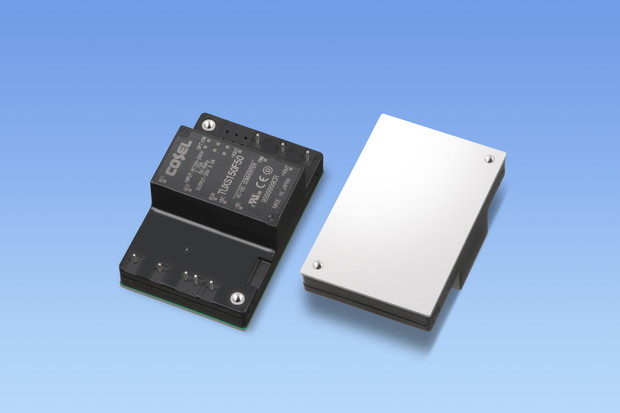

• AC-DC converter with PFC which is suitable for conduction cooling.
• Universal input voltage (AC85 - 264V)
• High density
• High reliability: not built-in aluminum and tantalum electrolytic capacitor
• Built-in overcurrent, overvoltage and thermal protection circuits
• High efficiency 94% (AC200V)
TUX(1) S(2) 150(3) F(4) 50(5) - □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
T: with Mounting hole
(φ3.4 thru)
N: Auto restart in protection circuit working
|
型號 |
輸入電壓 |
輸出瓦數 |
輸出電壓／電流 |
|
TUXS150F50 |
1Φ AC85～264V |
150W |
50V 3A |
|
TUXS200F24 |
1Φ AC85～264V |
199W |
24V 8.3A |
|
TUXS200F28 |
1Φ AC85～264V |
196W |
28V 7A |
|
TUXS200F32 |
1Φ AC85～264V |
198W |
32V 6.2A |
|
TUXS200F42 |
1Φ AC85～264V |
197W |
42V 4.7A |
|
TUXS200F50 |
1Φ AC85～264V |
200W |
50V 4A |
如需產品圖檔，請洽廣億科技服務人員，謝謝！
